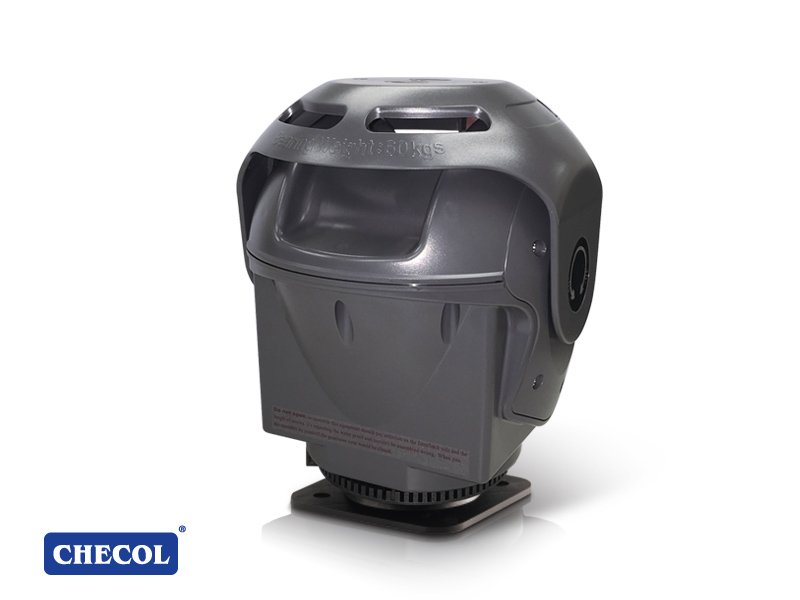

CHE-91MC

Passed IP67 certification, uses the most robust PC and P5 engineering plastic and are
revolutionary materials not replaceable by metals with the properties of: water proof,
flame proof, sunlight proof, insulating, not water permeable, non-cracking and
noiseless.

It is equipped with motor #4208 has torque of 90-kgf-cm with 1RPM, and may be
completely controlled at the 45° angle without sagging. Ensure the images are steady
and noiseless.

• Outdoor Pan / Tilt Scanner
• Rotation : Pan 350° ; Tilt 30° ~ 60°
• Speed :
  Pan : 6° / sec (60Hz) ; 5° / sec (50Hz)
  Tilt : 3.6° / sec (60Hz) ; 3° / sec (50Hz)
• Dimension(mm) : Ø180 x 230H
