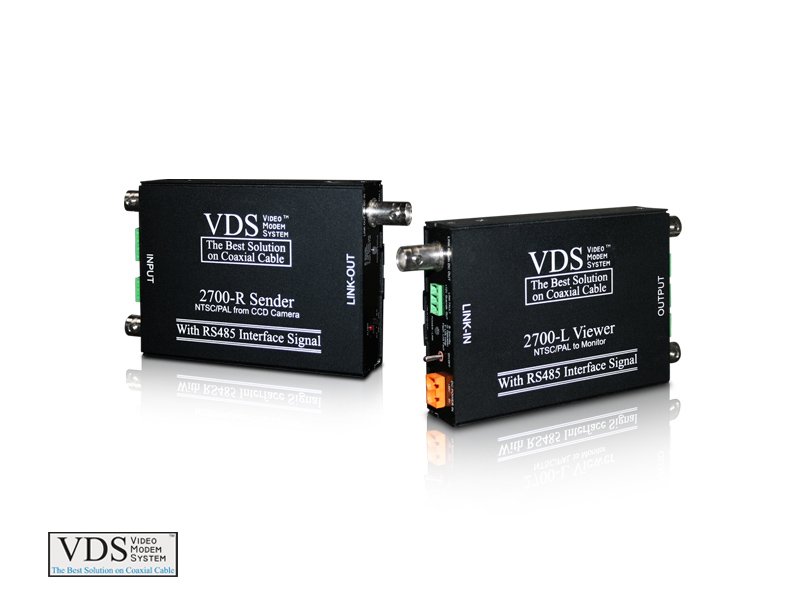

VDS-2700

VDS-2700 is the video signal transmission system to transmit video, alarm, audio,
RS-485 data and DC power via one coaxial cable. VDS-2700 consists of remote unit and
local unit respectively. The remote unit connects to a P/T/Z (pan/ tilt/ zoom) camera,
the local unit connects to a monitor in surveillance system. By using inter-carrier
technology, VDS-2700 provides an innovative transmission method, simple installation
and the highest quality picture transmitted for CCTV system.

• Half duplex channel for EIA standards RS-485 interface port
• The range of RS-485 Transmission Rate is between DC and 38 Kbits
• Great quality at video signal :
  - Real-time analogue video signals
  - No signal lost, No interference in video
  - No hum, No twist
• Using 5C-2V (Japan Spec) coaxial cable :
  Transmission distance can reach to 600M while sending the DC power 12V to P/T/Z
  camera via one coaxial cable.
  Without sending DC power to camera via link coaxial cable :
  Transmission distance can reach to 1,000M with connect to PTZ camera
• Link Fault alert buzzer inside (Siren sound)
• Built-in electrical transient voltage suppressor protection in the input and output
• Link cable lightning protection :
  Equipped with Gas Tube Arrester discharging high current inside the Local Unit
  LInk-in and Remote Unit Link-Out.
• Compact size, durable and reliable device
